SCR Voltage Regulators


SCR Voltage Regulators


Holding years of experience in this domain, we are crowned as a reliable Manufacturer, Exporter and Supplier of SCR Voltage Regulators sited in Delhi, India. SCR Voltage Regulators that we deal in have in-built LED configuration that displays the output. Our SCR Voltage Regulators are widely acclaimed owing to their reliable performance, shock resistance and compact sizes. Get in touch with us for availing the best deal.



Product Description : TSD/TSG series have the built-in LED which displays the output voltage. This new design has special advantages, such as high accuracy, good shock-resistant, good reliability, strong anti-interference ability, small overall dimensions, light weight, clear reading, no parallax, remote viewing results.It always applies with our another product TSG V to control temperature of bottle blowing machine or other mechanical equipments. An intelligent voltage regulator with digits independent PV and SV displays.easy to read , and good quality Intelligent voltage regulator TSD-V is of 2 rows 3 digits independent PV and SV displays.When used together with SCR,Triac voltage regulator can regulate the voltage across the load.High quality and high accuracy voltage regulator

Technical data:

  • Output impulse - Breadth value ≥ 3v, width ≥ 50us; S (when the load resistance is 20ohm)
  • Voltage setting range - 0-220v(or the voltage range you want)
  • Working environment - Temperature 0-50 degrees celsius, relative humidity does not exceed 85%, non-corrosive environment.
  • Power supply- AC 220v+/-15%, 50Hz+/-1Hz; About 3va


Size :

  • TS-V 48x48x88mm
  • TSA-V96*96*100mm
  • TSD-V72*72*100mm
  • TSG- 48*48*88

Specifications

Type Auto Voltage Regulator
Material Aluminium, Brass
Application Voltage Use
Color Creamy, Black
Automatic Grade Manual
Features Accurate Reading, High Performance, Lightweight Specifications, Longer Service Life
Current Type AC, DC

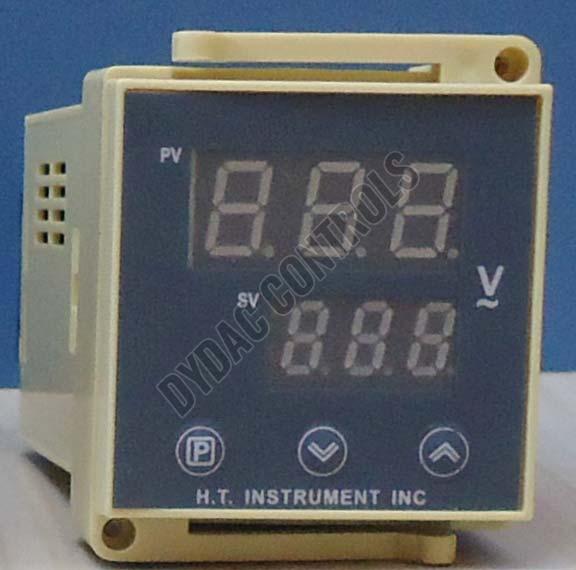

  • SCR Voltage Regulator (48)

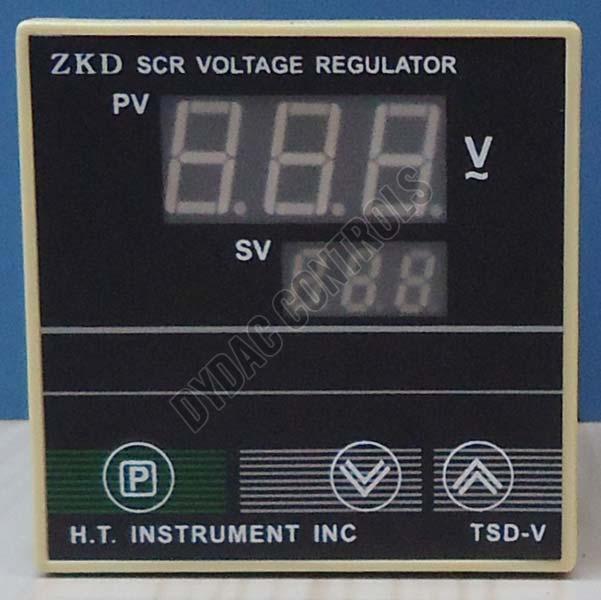

  • SCR Voltage Regulator (72)
